OTS-6-1.14-01

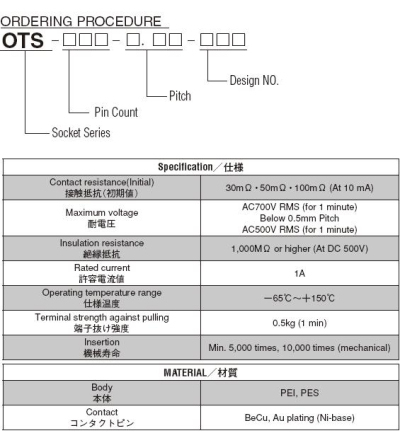

Product Descriptions

Contact resistance(Initial)：30mΩ?50mΩ?100mΩ (At 10 mA)
Maximum voltage：AC700V RMS (for 1 minute)
                               Below 0.5mm Pitch
                             AC500V RMS (for 1 minute)
Insulation resistance：1,000MΩ or higher (At DC 500V)
Rated current：1A
Operating temperature range：?65℃?＋150℃
Terminal strength against pulling：0.5kg (1 min)
Insertion：Min. 5,000 times, 10,000 times (mechanical)
Body：PEI, PES
Contact：BeCu, Au plating (Ni-base)
